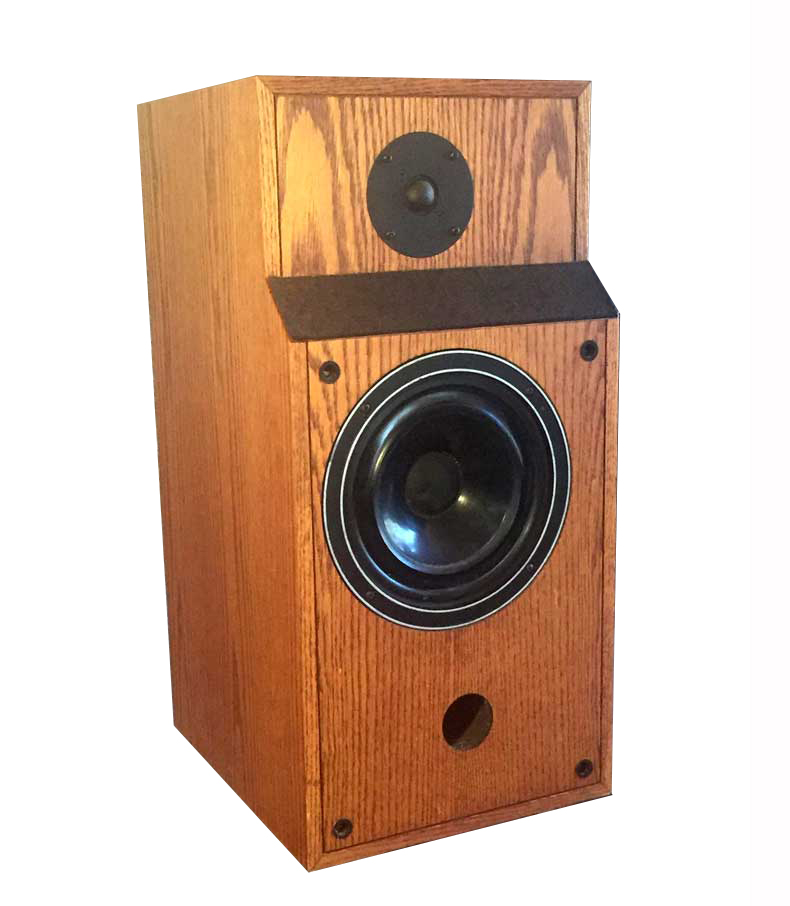

Audio Spec-Tondo 90S

Audio Spec
Tondo 90S
Canada
Type: Passive
Positioning: Bookshelf
Enclosure: Bass Reflex
Port Position: Front
Way system: 2
Frequency Response: 3220.000 Hz -3dB
Sensitivity: 86 dB
Dimensions (W x H x D): 30.5 x 63.5 x 37.5 cm
This system, designed by Malcolm Jones (chief engineer and founder of Kef) was originally released as a DIY kit by Falcon Acoustics in the UK. The cabinet is reflex-loaded and is heavily damped with suspenders and internal retaining panels. The baffle is time-aligned and the tweeter area has surface damping. Driver units: 25mm Audax tweeter with high dispersion doped cloth diaphragm; 210mm Audax mid/bass driver with 37mm coil, die cast chassis, long-throw magnet system and Bextrene cone. Bass reflex port tuned to 28Hz. Power Handling: 100W max.
