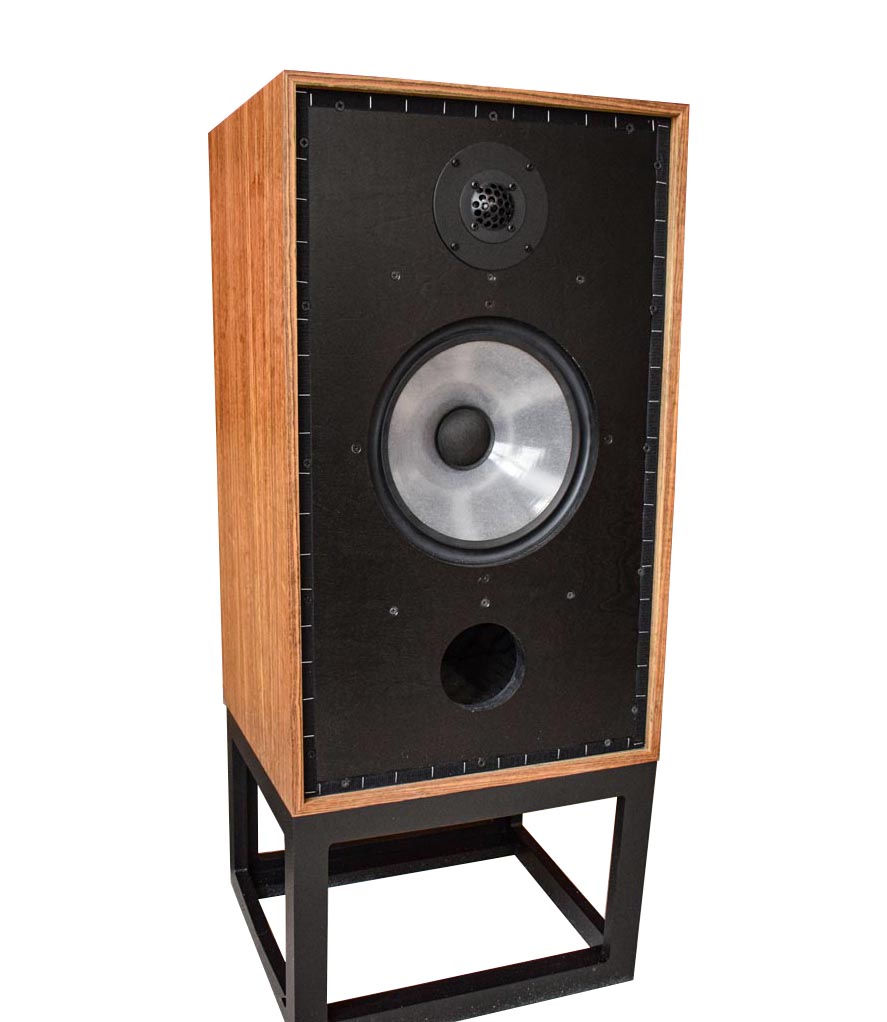

Rogers-PM-510 S3

Rogers
PM-510 S3
United Kingdom
Type: Passive
Positioning: Standmount
Enclosure: Bass Reflex
Port Position: Front
Way system: 2
Nominal Impedance: 15 Ohm
Frequency Response: 45 - 20.000 Hz -3dB
Sensitivity: 93 dB
Dimensions (W x H x D): 46 x 76 x 40 cm
Tweeter: 34mm silk Dome, phase correction plate. Low mass Copper Clad Aluminium wire, single layer low mass voice coil for improved transient response. Woofer: 305 mm lightweight PVC cone with twin rear suspension to minimise high transient distortion. Extended pole with flux control ring for low modulation distortion. Low-mass copper-clad aluminium voice coil for improved transient response. (Made in the UK by VOLT Loudspeakers to Rogers design specification.) Enclosure: 12 mm Baltic birch plywood with real wood veneer. Bass Loading: Reflex loaded, tuned to 35 Hz. Crossover: 3rd order, 18dB per octave, high power ferrite cored inductors, high voltage film capacitors. Screened torroid chokes. Power Handling: 250W RMS. Recommended Placement: On our matching stand to position tweeter at ear level. Allow 250mm clear from room boundaries. Dedicated Speaker Stands: Included.
